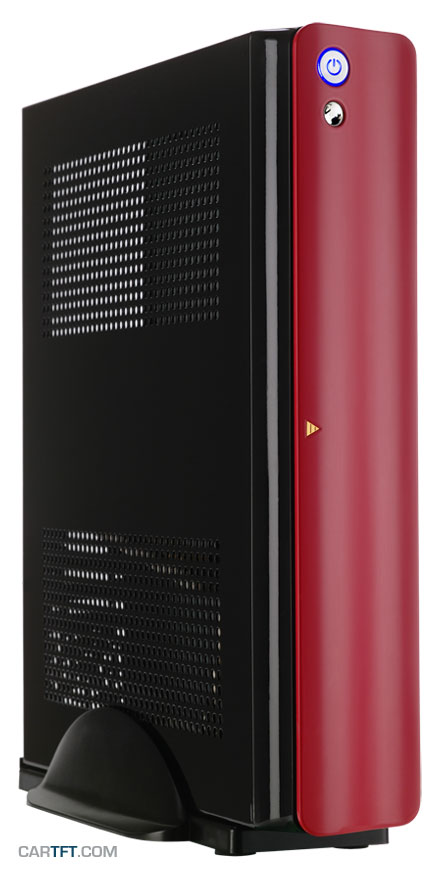

MHero-L-R Mini-ITX enclosure (1x PCI, Slimline ODD, 84W PSU)

3D 360° View

This beautiful enclosure for Mini-ITX and Micro-ATX can be equipped with every mainboard where CPU heatsink height does not exceed 5,5cm. Behind his slideable front bezel there are 2x USB ports, 1xMic, 1xLine-Out and the slimline drive bay for CD/DVD drives.

Because of the integrated ATX 120W power supply and the external 84W AC/DC adapter you fanless can power also systems with higher performance. For using the system as a car-pc you can exchange the internal PSU against a M2-ATX(-HV) Automotive power supply.

The PCI-riser card, which is in scope of supply, enables you to install a PCI card. On enclosure rear side you also can install 2x RS232 ports, 1x SATA an [more]

59.95 EUR
incl. 19% VAT, plus shipping
In Stock (233 pcs)

SSD (2.5"):

Installation notes
Possible configurations (Mini-ITX)	1x PCI, 1x 2.5" HDD/SSD, 1x Slimline CD/DVD or 1x 3.5" HDD, 1x Slimline CD/DVD
Possible configurations (Micro-ATX)	1x 2.5" HDD/SSD, 1x Slimline CD/DVD (Board size max. 200x245mm)
Max. CPU-heatsink/fan height	55 mm (eg. Intel Original heatsink i3/i5/i7)
Specifications
Dimensions	295 x 280 x 64 mm
Weight	2,1kg (2,8kg with accessoiry and packing)
Internal Power Supply	Built-in 120W DC power board (size compatible with M2-ATX(-HV))
Power supply connectors	1x P4 1x ATX 20/24 pol 1x 2.5" PATA 2x 3,5" PATA 1x SATA
External AC Adapter	-- Input (AC 100~240 V) -- Output (DC 12V, 7A) 84W
Possible extensions on rear side	1x PCI 1x 4-pin port 1x SATA port 2x RS232
Front Access	2 x USB(2.0), 1x Mic, 1x Line-Out
Scope of supply
	- MHero-L-R Mini-ITX/Micro-ATX enclosure
	- Fanless external power adapter 84W + EU power cord
	- Fanless internal power supply 120W
	- Plastic stand
	- 4x rubber feet
	- PCI-Riser (90°)
	- Screws

Data sheet	Download (PDF)
Data sheet	Print view

Please login for creating product ratings.

Your rating:

Please tell us your opinion. Rate the product on a scale from 1 to 5. A value of 5 means the best possible rating. If you want you also can leave a comment.

Your ratings are honored on many ways. Your report will help other customers to better judge about the products. And you can benefit from reports other customers are giving.

In addition we credit 0.50 EUR for each given rating with comment and 1.00 EUR for each given rating with comment (more than 150 characters) on your account. The credit will be substracted automatically on your next order !

We reserve us the right to delete given comments (for example on attempts to give comments with senseless content, copying of other comments, inserting of foreign content, abusing the system for financing orders). "Fair-use-policy" does apply (as of rule of thumb you should give comments for products which you have purchased already. And your credit account only in rare cases will have 2 or even 3 digits). The credit can only be withdrawn by placing an order. It is not possible to get the credit cash or transferred in an other way.

Customer ratings: Average rating, based on 8 ratings

from kk-system am 13.07.2017 |

robust und chic anzusehendes gehäuse,die lochstellungen für slime line 5,25Laufwerke (DVD..=etc.) stimmt nicht, löcher müssen einseitig auf vertikale langlöcher aufgebohrt werden. externe stromversorgung Netzteil zufriedenstellend in der Leistungabgabe. bis jetzt noch keine Ausfälle! Bis auf den Mehraufwand bei dem Einbau vom slimline Laufwerke eindeutige Kaufempfehlung. Preis Leistung gut!!

from konai am 02.01.2014 |

I really can't imagine how drunk was the designer of this box. It's designed to open "down"... but hey.. there is a table on the way!! So you can't open the box while it is on the table (ecxept if you turn it upside down). Not to talk about the materials itself. The front door is somehow curved (so it do not close properly). The internal "board holders" are misplaced by 2 or more milimeters (tried with 3 different boards). So you have to push the board into place and screw it while pushing it. My opinio? Never buy this box.

from Enigma am 18.04.2013 |

This case has a severe design flaw, it's upside down.

If you want to put the case on the table horizontally, you have two choices. One is the "proper" orientation where the motherboard would be at the bottom, and the CPU fan would blow air upwards. In that case, the sliding door will open downwards, towards the desk.

The other option is to flip the case around so the motherboard is at the top, hanging down, and only in that case can you open the sliding door. But now the DVD drive will be upside down, and the ventilation holes will be at the bottom. This is the wrong way to go, but is the only choice if you want to open the sliding door upwards.

This is one idiotic case. Opening the door downwards towards the desk. Was it so hard to do it properly and have it open upwards?

from montel am 14.07.2012 |

Das ansprechende Gehäuse sieht nicht nur gut aus, es ist auch gut verarbeitet, bietet Platz für ein Mini-ITX-Board und mehrere 2,5"-Speichermedien. Ein Slim-LW würde ebenfalls noch reinpassen. Die "Schubblende" gibt auf jeden Fall was her - ich kann dieses Gehäuse nur empfehlen. Artikel wurde gut verpackt sehr schnell geliefert.

from 01778896541@gmx.de am 06.02.2012 |

| See all my comments

Tolles Gehäuse, Optisch sehr schön und auch gut verarbeitet. Habe es mir für meinen Schreibtisch gekauft. Passt sehr schön dort hin und braucht nicht soviel platz wie ein Tower. Habe ein Fujitsu D 2703-S Mainboard eingebaut aber leider erst zuspät erkannt das diese Board ein 24 V Netzteil benötigt. Was leider nicht in diesem Gehäuse verbaut ist. Somit musste ich mir noch ein zusätzliches Netzteil kaufen.
* An diese Stelle noch einmal ein dickes Lob an den Support von CarTFT. Die mir mit Kompetenter Beratung zur Seite standen*****
