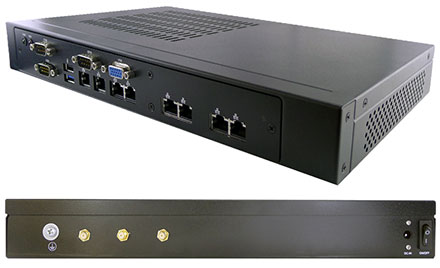

Jetway HBJC141F9HG04-29B (Intel Bay-Trail)

Intel Bay Trail-M N2930 (1.83GHz) Quad Core SoC Processor
2 * DDR3L 1333MHz SO-DIMM up to 8GB
1 * USB3.0, 1 * USB2.0, 2 * COM, 1 * GPIO, 1 * VGA
4 * GbE, expansion LAN Card * 4 ports (optional)
Supports 12V DC jack on back panel for external power supply
Provides DC-12V_5A_60W Adapter

459.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks.
Will be ordered for you.

RAM :

SSD (mSATA):

Build/Install:

Product Dimension	– 192(D) * 330(W) * 44(H) mm
Product Model	– HBJC141F9HGXX-29B
Model No	– JBC141F9HG04-29B – JBC141F9HG08-29B – JBC141F9HGW4-29B – JBC141F9HGW8-29B
MB Model	– JNF9HG-2930 / Mini-ITX
BIOS	– AMI 128 MB Flash ROM
CPU	– Intel® Bay Trail – M/D/I Processor (2930)
Memory	– 2 * SO-DIMM DDR3L 1333MHz up to 8GB
Expansion	– 1 * Mini-PCIE (Full size) – 1 * Mini-PCIE for mSATA (Full size)
Storage	– 2 * 2.5” SATA bay – 1 * mSATA (Full size)
Front I/O Port	– 1 * Power LED, 1 * HDD LED – 1 * USB 3.0, 1 * USB 2.0 – 2 * COM – 1 * GPIO (Optional) – 1 * VGA – 4 * GbE – 4 * Expansion LAN Card (Optional)
Rear I/O Port	– 1 * DC-in – 1 * GND Hold
Power Source	– Supports 12V DC input – Provides AC_90~240V / DC_12V 60W adapter
Accessory	– 1 * Power cord – 1 * DC-12V/5A/60W Adapter – 1 * User Manual – 1 * CD driver – 1 * Screw Pack
Packing	– Net Weight： 1.6 KG – Gross Weight：2.6 KG – Color Box Dimension： (W) x (D) x (H) mm
Temperature	– Operating within 0~50°C – Storage within -10~70°C
Certification	– EMC : CE , FCC , LVD – Safety : RoHS , ErP
Applications	– Industrial Control System – Networking Server System – Security Industry
Warranty	– 2 Year limited warranty

Data sheet	Download (PDF)
Data sheet	Print view
Jetway Catalog (Rackmount)	Download (PDF)
Jetway Catalog (Barebones)	Download (PDF)
