Jetway JBC390F541SXA-19-B (Intel Bay Trail) [6x LAN]

Perfect as router !
6x Intel Gigabit LAN !
Intel Quad Core CPU !
FANLESS !

Excellent as a router. 6x Intel i211AT Gigabit LAN connections, high NAT performance thanks to Intel 2Ghz Quad-Core Celeron CPU, 3G / 4G / LTE / 5G modem or WLAN upgradeable via mini-PCIe slot. 1x COM port (RS232 / 422/485) and optionally 4x more can be retrofitted. Fanless, small, energy efficient, strong!

For a full PC you need in addition:
- 2.5" HDD/SSD or mSATA SSD
- RAM

Fanless Intel Celeron Bay Trail J1900 SoC Processor
6 * Intel Gigabit LAN Ports
Optional: Add 4 * COM Ports (PN# ADPIECOM4)
ECO-design for EuP/ErP

[more]

559.00 EUR
incl. 19% VAT, plus shipping
Available in 6 weeks.
Will be ordered for you.

RAM :

SSD (mSATA):

SSD (2.5"):

Build/Install:

Fanless Intel Celeron Bay Trail J1900 SoC Processor
6 * Intel Gigabit LAN Ports
Optional: Add 4 * COM Ports (PN# ADPIECOM4)
ECO-design for EuP/ErP

Scope of supply : Jetway JBC390F541XA-19-B, 12V 60W AC/DC power adapter with power cord, screws, 2x DIN Rail mounting adapter, Driver CD, manual, 2x metal mounting adapter

Specification

Model Name	JBC390F541XA-1900-B
Part Number	HBJC390F541XA19B
Motherboard Specification
CPU	Intel® Celeron J1900, 2.0GHz Quad-Core SoC, 10W, Bay Trail
Memory	1 * 204-pin DDR3L-1333 SO-DIMM up to 8GB (1.35V required)
Graphics	Intel HD Graphics
LAN	6 * Intel i211AT Gigabit LAN
Audio	Realtek ALC662 HD Audio
Storage	1 * 2.5" SATA2 3Gb/s drive bay for HDD or SSD 1 * mSATA/mini-PCI Express shared slot (Full-size)
Wireless / Mini-PCIE Slot	1 * Mini-PCI Express slot (Full-size)
USB / SIM	Embedded 1 * USB 3.0 and 3 * USB 2.0, 1 * SIM card socket
Chassis Specification
Product size	185 (W) * 165 (D) * 48 (H) mm
Color	Black
Storage Bay	1 * 2.5" Drive Bay (Only support SATA 2.5" HDD or SSD)

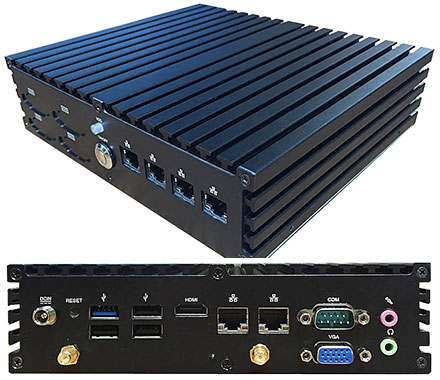

Front I/O Port	1 * Power Button 1 * HDD LED 4 * RJ-45 LAN ports
Rear I/O Port	1 * +12V DC-in jack 1 * Reset Switch 1 * USB 3.0 ports 3 * USB 2.0 ports 1 * HDMI 2 * RJ-45 LAN ports 1 * Serial port (RS232/422/485) 1 * VGA port 1 * Line Out jack 1 * MIC In jack 2 * holes for SMA pigtail Connectors for WiFi Antenna
Environment	Operating Temperature : 0 ~ 40°C Storage Temperature : -20 ~ 85°C
Functional	Networking Appliance, Firewall/Router, Industrial Contol, Digital Security, Embedded System
Certificate	CE,FCC,ErP For Barebone CE,FCC,TUV,UL,CCC,CB,ErP For Power Adapter

Data sheet	Download (PDF)
Data sheet	Print view
Jetway Catalog (Rackmount)	Download (PDF)
Jetway Catalog (Barebones)	Download (PDF)
