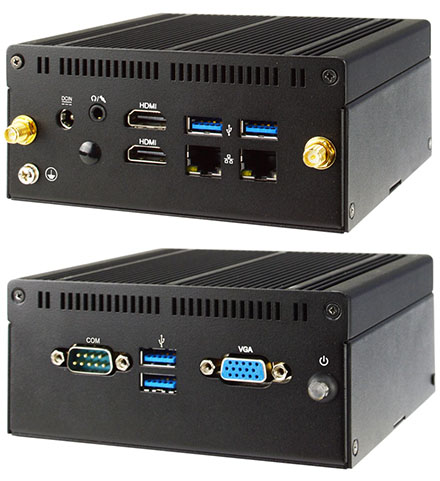

Jetway HBFBU691Z-3455-B (Intel Apollo Lake)

WiFi !

Intel® Apollo Lake SoC Processor
Support 1* DDR3L 1866MHz SO-DIMM up to 8GB
Mini PCIe ac WiFi
1* VGA, 2* HDMI
4* USB3.0, 1* RS232/422/485, 2* GbE, 1* Audio
12V DC-in

369.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks.
Will be ordered for you.

RAM :

SSD (mSATA):

Build/Install:

MB Model	– JNU691B-3455
Part No.	– HBFBU691Z-3455-B (support Mini PCIe ac WiFi)
BIOS	– AMI UEFI
CPU/Chipset	– Intel® Apollo Lake J3455 SoC Processor (Quad Core, 1.50/2.30 GHz)
Memory	– Support 1 * DDR3L 1866MHz SO-DIMM up to 8GB
Network	– 2 * RJ45 (Realtek RTL8111H GbE) – Mini PCIe ac Wifi card (HBFBU691Z-3455-B only)
Storage	– Support 1 * mSATA (full size) Device
Expansion	– 1 * half size Mini PCIe slot for WiFi module
Audio	– HD Audio: Realtek ALC662VD
Rear Panel I/O	– 2 * USB 3.0 – 2 * HDMI (Max. resolution: 3840×2160@30Hz) – 2 * GbE – 1 * GND hold – 1 * Line-out/MIC combo – 1 * DC-in jack
Front Panel I/O	– 1 * VGA (Max. resolution: 1920×1200@60Hz) – 2 * USB 3.0 – 1 * COM (RS232/422/485) – 1 * power button
Power Source	– Adapter : AC 90~240V / DC12V / 40W – MB : 12V DC input
Compliance	– CE, FCC, RoHS, ErP
Temperature	– Operating Temperature: 0 ~ 50° C with air flow (mSATA) – Storage Temperature: -10 ~ 70° C – Humidity : 90%, non-condensing
Dimensions	– 124(W) x 109 (D) x 55 (H) mm

Data sheet	Download (PDF)
Data sheet	Print view
Jetway Catalog (Rackmount)	Download (PDF)
Jetway Catalog (Barebones)	Download (PDF)
