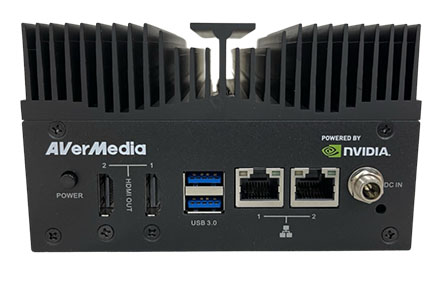

AVerMedia NO115B BoxPC (NVIDIA Jetson NANO Version B01 Module)

AVerMedia NO115B BoxPC (NVIDIA Jetson NANO Version B01 Module)
  • NVIDIA® Jetson NANO Version B01 !
  • FANLESS !
  • 1x HDMI !
  • 2x LAN !

  • Embedded NVIDIA® Jetson NANO Version B01 module
  • 2x GbE, 3x USB 3.0, 1x 4Kp60 HDMI outputs
  • 1x micro-SD card slot
  • Operating temperature: 0°C ~ 60°C
  • Dimension: 126mm x 96mm x 74mm
[more]
Share

659.00 EUR
incl. 19% VAT, plus shipping
Available in 6 weeks.
Will be ordered for you.
Add to cart

  • Embedded NVIDIA® Jetson NANO Version B01 module
  • 2x GbE, 3x USB 3.0, 1x 4Kp60 HDMI outputs
  • 1x micro-SD card slot
  • Operating temperature: 0°C ~ 60°C
  • Dimension: 126mm x 96mm x 74mm


AVerMedia’s AVerAI NO115B is the next generation of AI Box PC that is designed with the NVIDIA® Jetson NANO Version B01 module. Suited for situations where space is a premium, this high inference AI Box comes in at a compact 126mm (W) x 96mm (L) x 74mm (H). And with a fanless design, the thermally optimized housing is capable of 0°C ~ 60°C while running virtually silent.

We understand that every situation has a set of unique requirements and this is the reason the NO115B is designed with a list of rich I/O functions. From 2x 2 Lane MIPI CSI-2, 1x 4 Lane MIPI CSI-2 MIPI Camera Input (internal), to 1x 4Kp60 HDMI output, and 2x GbE RJ-45, you can rest assure that the NX215B carries key I/O ports for your unique application.


TypeBox PC
NVIDIA GPU SoC Module CompatibilityNVIDIA® Jetson NANO Version B01 module
Networking2x GbE RJ-45
Display Output 1x HDMI 3840 x 2160 at 60Hz
TemperatureOperating temperature 0°C~60°C (tbd)Storage temperature -40°C ~ 85°CRelative humidity 40 °C @ 95%, Non-Condensing
MIPI Camera Inputs(Internal)• 2x 2 lane MIPI CSI-2, 15 pin FPC 1mm Pitch Connector (Compatible on NVIDIA® Jetson Xavier™ NX Developer Kit)• 1x 4 lane MIPI CSI-2, 36 pin FPC 0.5mm Pitch Connector
USB1x USB 2.0 Micro-B for recovery3x USB 3.0 Type-A (1x internal)
Storage1x micro-SD card slot1x M.2. key M 2280 for SSD
Expansion Header (Internal)20 pins: 2x I2C, 1x UART, 4x GPIOs, 2x CAN (EU terminal block)
Input PowerDC in Jack on board & ATX 4pin12V/5A, 9V~19V is recommended.
Power CordUS/JP/EU/UK/TW
Fan ModuleFanless Solution
ButtonsPower and Recovery
RTC BatterySupport RTC battery and Battery Life Monitoring by MCU
PCB/Electronics Mechanical InfoW: 126mm x L: 96mm x H: 74mm (4.96” x 3.80” x 2.91”)Weight: 1kg (tbd)
CertificationsCE, FCC
Data sheet Download (PDF)
Data sheet Print view
Specifications Download (PDF)
Manual [EN] Download
