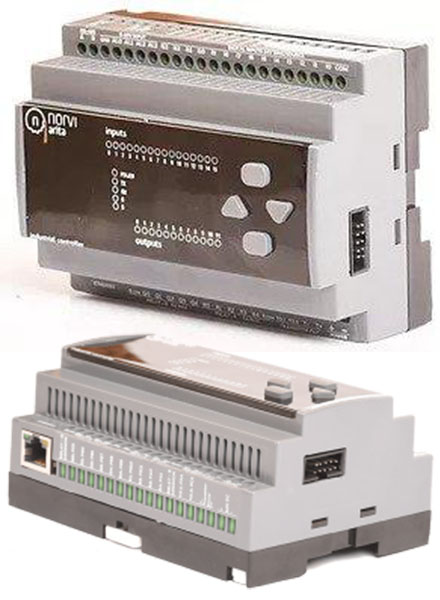

NORVI-ARITA-M8 MAPLE (10 x 2A Relay outputs / W5500 Ethernet)

NORVI-ARITA-M8 MAPLE (10 x 2A Relay outputs / W5500 Ethernet)
  • STMF103VCT6 !
  • RS-485 Communication !
  • Ds1307 RTC !
  • W5500 Ethernet !

  • OLED Display 0.96’
  • 14x Sink/Source Digital Inputs
  • 10x 2A Relay outputs
  • 2x NPN Transistor outputs
  • 1x RS-485 Communication
  • 2x Analog inputs 4-20mA
  • 2x Analog inputs 0-10V DC
  • W5500 Ethernet Connectivity
  • micro-SD Card support


NORVI Arita is a higher capacity version of NORVI Series. Selection five standard models available with a choice two powerful micro-processors. Arita is designed to yield the every bit of performance in the micro-controller without compromising its reliability. It is compatible with almost every industrial input and output type. Connectivity is the factor which ma [more]
Share

349.95 EUR
incl. 19% VAT, plus shipping
In Stock (2 pcs)
Add to cart

  • OLED Display 0.96’
  • 14x Sink/Source Digital Inputs
  • 10x 2A Relay outputs
  • 2x NPN Transistor outputs
  • 1x RS-485 Communication
  • 2x Analog inputs 4-20mA
  • 2x Analog inputs 0-10V DC
  • W5500 Ethernet Connectivity
  • micro-SD Card support


NORVI Arita is a higher capacity version of NORVI Series. Selection five standard models available with a choice two powerful micro-processors. Arita is designed to yield the every bit of performance in the micro-controller without compromising its reliability. It is compatible with almost every industrial input and output type. Connectivity is the factor which makes it suite today’s world, for a connected world, we have included all the industrially accepted communication methods in it. Arita is used everywhere, it has many characters, it can be a motion controller handling heavy positioning tasks or a data logging server.


Main
Range of product NORVI ARITA
Product type Programmable Controller
Rated supply voltage 24V DC
Discrete input number 14 discrete input , interrupts configurable on each input
Analog input number 2x 4-20mA and 2x 0-10V DC
Discrete output type Relay and Transistor
Discrete output number 10 Relay outputs , 2 Transistor outputs
Discrete output voltage 24V DC for transistor output
Discrete output current 0.5A with T0.0... T0.1 Transistor
2 A with R0....R4 and Q0....Q4 Relay outputs
Display OLED Display 0.96’
Connectivity W5500 Ethernet
Storage micro-SD Card support
Complementary
Discrete IO number 26
Number of Expansions 4
Supply voltage limits 20.4....28.8V
Inrush current <=50A
Power consumption in W 32.6......40.4 with all outputs ON
Discrete logic input Sink or source
Discrete input voltage 24V
Discrete input voltage type DC
Voltage state 1 guaranteed >=15 V for input
Voltage state 0 guaranteed <=5 V for input
Discrete input current 5 mA for input
Input impedance 4.7k Ohm for input
Memory capacity Refer datasheet of base micro-controller
Battery type lithium non rechargable *Model 8 Only
Backup time 2 years at 25’C *Model 8 Only
Local signalling 1 LED green for PWR
1 LED green for RUN
14 LED green for I0......I14
10 LED green for Q0......Q4 and R0.....R4
2 LED green for T0....T1
Electrical connection Removable screw terminal block for inputs and outputs (pitch 5.08 mm)
Mounting support Top hat type TH35-15 rail conforming to IEC 60715
Top hat type TH35-7.5 rail conforming to IEC 60715
Plate or panel with fixing kit
Height 86.60 mm
Depth 56.60 mm
Width 122.10 mm
Product weight 0.43 Kg
Environment
Resistance to electrostatic discharge 4kV on contact
8kV on air
Resistance to electro magnetic fields 10 V/m (80 MHz ...... 1GHz)
3 V/m (1.4 MHz ...... 2 GHz)
1 V/m (2 MHz ...... 3 GHz)
Immunity to microbreaks 10 ms
Relative humidity 10....95% without condensation in operation
IP degree of protection IP20
Operating altitude 0...2000m
Storage altitude 0...3000m
Shock resistance 15 gn for 11 ms
