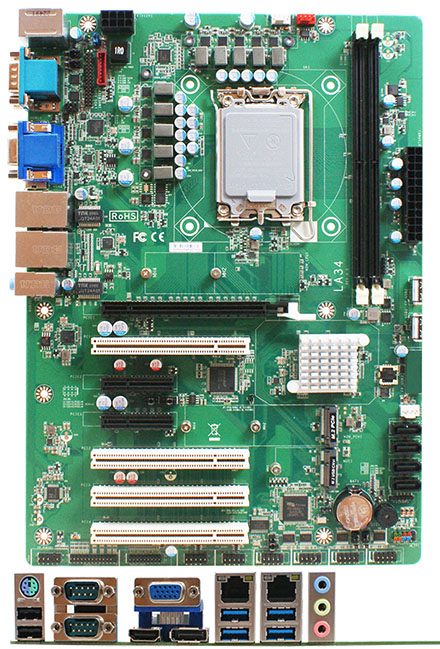

Jetway LA34-H6100 ATX (Intel Alder Lake-S H610, LGA1700, 2x LAN)

Intel Comet Lake !
2* LAN !
ATX Formfactor !

305x220mm size with 14th/13th/12th Intel® Core™ i9/i7/ i5 /i3, Celeron & Pentium® LGA1700 Socket Processor, DDR5 up to 64GB, support 3 display

Intel® 14th/13th/12th LGA1700 Socket Processor (Max.125W TDP)
Intel® Alder Lake-S H610/H610E Chip
2* DDR5 4800MHz UDIMM up to 64GB
1* VGA, 1* HDMI, 1* DP, 1* LVDS/EDP(Option)
1* 2.5GbE, 1* GbE
6* COM, 4* USB3.2 (Gen.1), 6* USB2.0, 2* USB2.0 Type-A (Vertical)
1* M.2 M-key (2280, NVMe, PCI-Ex2 Interface), 1* M.2 E-key (2230, CNVi Interface)
1* PCI-Ex16 (Gen.4), 2* PCI-Ex4 (Gen.3), 4* PCI
Onboard TPM2.0(Option)
ATX Power

[more]

289.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks.
Will be ordered for you.

RAM :

SSD (M.2 NVME):

OS:

Build/Install:

305x220mm size with 14th/13th/12th Intel® Core™ i9/i7/ i5 /i3, Celeron & Pentium® LGA1700 Socket Processor, DDR5 up to 64GB, support 3 display

Intel® 14th/13th/12th LGA1700 Socket Processor (Max.125W TDP)
Intel® Alder Lake-S H610/H610E Chip
2* DDR5 4800MHz UDIMM up to 64GB
1* VGA, 1* HDMI, 1* DP, 1* LVDS/EDP(Option)
1* 2.5GbE, 1* GbE
6* COM, 4* USB3.2 (Gen.1), 6* USB2.0, 2* USB2.0 Type-A (Vertical)
1* M.2 M-key (2280, NVMe, PCI-Ex2 Interface), 1* M.2 E-key (2230, CNVi Interface)
1* PCI-Ex16 (Gen.4), 2* PCI-Ex4 (Gen.3), 4* PCI
Onboard TPM2.0(Option)
ATX Power

Model	– LA34-H6100 – LA34-H6102 (TPM2.0)
Form Factor	– ATX (305 * 220mm)
Processor System	– Intel® 14th/13th/12th LGA1700 Socket Core i9/i7/i5/i3/Pentium/Celeron Processor (Max. 125W TDP) – Intel® Alder lake-S H610/H610E chipset – AMI Flash ROM BIOS
Memory	– 2* DDR5 4800MHz Dual Channel UDIMM up to 64GB
Storage	– 4* SATAIII – 1* M.2 M-key (2242/2280 PCI-Ex2 Gen.3 interface)
Expansion	– 1* M.2 E-key (2230, USB2.0+CNVi interface) – 1* PCI-Ex16 (Gen.4) – 2* PCI-Ex4 (Gen.3, PCIE2 Interface: PCI-Ex1) – 4* PCI
Ethernet	– 1* Intel® I226-V 100/1000/2500Mbps – 1* Intel® I219-V 10/100/1000Mbps
Graphics	– Intel® HD Graphics, shared memory – 1* HDMI2.0 (Max Resolution: 4096×2304@60Hz) – 1* DP1.4 (Max Resolution: 7680×4320@60Hz) – 1* VGA (Max Resolution: 25601600@60Hz) – 1 LVDS/EDP (Max Resolution: 1920*1080@60Hz,Option) – Support Triple Displays
Audio	– HD audio: Realtek ALC897
Watchdog Timer	– From Super I/O to drag RESETCON# – 256 segments (10sec ~ 255min)
Internal I/O	– 4* USB2.0 (PH2.54) – 2* USB2.0 (Vertical) – 4* RS232 (COM3/4: 5/12V TTL) – 16bit GPIO (5V) Co-lay LPT – 1* LVDS/EDP + Inverter (Option for Factory) – 4* SATAIII – 1* 24+8pin Power connector – 1* Chassis intrusion – 1* FP_ Audio – 1* PS/2 – 1* SMBUS – 1* AT model – 1* CPU FAN Header(Smart FAN) – 2* SYSTEM FAN Header
External I/O	– 4* USB3.2(Gen.1) – 2* USB2.0 – 1* VGA – 1* HDMI2.0 – 1* DP1.4 – 2* COM (RS232/422/485) – 2* RJ45 – 1* Audio (Line-in + Line-out + MIC)
Power	ATX PWR(24+8pin), AT/ATX Supported – AT: Directly PWR on as Power input ready – ATX: Press Button to PWR on after Power input ready
Compliance	– CE, FCC, LVD,RoHS, REACH (Option)
Temperature	– Operating Temperature: -10 ~ 60° C – Storage Temperature: -20 ~ 70° C – Humidity: 10% ~ 90% RH @40°C (non-condensing)
OS Support	– Windows 10, Windows 11, Linux

Data sheet	Download (PDF)
Data sheet	Print view
Jetway Catalog (ARM)	Download (PDF)
Jetway Catalog (Mainboards)	Download (PDF)
