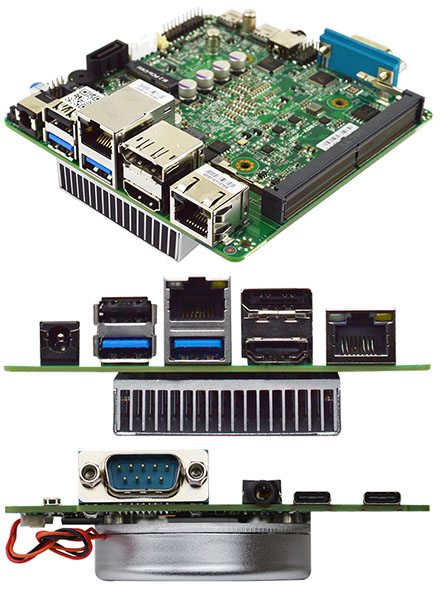

Jetway JNUC-ADN1-N97000 NUC Mainboard (Intel N97 Processor, TDP 12W, 2x LAN)

Intel N97 !
2x LAN !
NUC Format !

1* DDR5 4800MHz SODIMM Slot, up to 16GB
1* HDMI 2.0b, 1*DP1.4, 2* Typ C DP
2* 2.5GbE
1* RS485/422/232
4 x USB 3.2 Gen2 (2 x Type-A, 2 x Type-C DP ALT Mode), 3 x USB2
1 x M.2 2260/2280 M-key, 1 x M.2 2230 E-key
DC Input 12-19

289.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks.
Will be ordered for you.

RAM :

SSD (mSATA):

SSD (M.2 NVME):

OS:

Build/Install:

SYSTEM
FORM FACTOR	NUC
CPU	Onboard Intel® Processor N-series Processors Intel® Processor N97 *For additional compatible CPUs, please contact regional sales
CPU TDP	12W
CHIPSET	Integrated with Intel® SoC
MEMORY TYPE	1 x DDR5 4800MHz, Single Channel SODIMM, up to 16GB
BIOS	UEFI with Intel PTT fTPM2.0
WAKE ON LAN	Yes
WATCHDOG TIMER	255 Levels
SECURITY	TPM2.0 (Optional)
RTC BATTERY	Lithium Battery
DIMENSION (L X W)	101mm x 101mm (4″ x 4″)
OS SUPPORT	Windows® 10 (64bit), Windows® 11 (64bit) Linux
POWER
POWER REQUIREMENT	DC 12~19V
POWER SUPPLY TYPE	AT/ATX
CONNECTOR	External DC-in Connector
DISPLAY
CONTORLLER	Intel® UHD Graphics
LVDS/eDP/MIPI-DSI	—
DISPLAY INTERFACE	1 x HDMI 2.0b, up to 4K x 2K 60Hz 1 x DP1.4, up to 4K x 2K 60Hz 2 x Type C DP1.4, up to 4K x 2K 60Hz
MULTIPLE DISPLAY	Support 3 Displays
AUDIO
CODEC	Realtek ALC897
AUDIO INTERFACE	Line-out/MIC
SPEAKER	—
EXTERNAL I/O
ETHERNET	2 x Intel® i225V, 10/100/2500Base
USB	2 x USB3.2 Gen 2 2 x USB3.2 Gen 2 Type C support ALT mode 1 x USB2.0
SERIAL PORT	1 x RS232/422/485
VIDEO	1 x HDMI 2.0b 1 x DP1.4 2 x Type C DP1.4
INTERNAL I/O
USB	2 x USB2.0
GPIO	8-Bit
SMBUS	Yes
FAN	1 x CPU Fan
SIM	—
FRONT PANEL	PWR LED Power Button
OTHERS	1 x Chassis intrusion 1 x AT mode
STORAGE
SATA	1 x SATA3 1 x SATA Power Connector
MINI PCI-E/MSATA	—
M.2	1 x M-Key 2260/2280 (SATA/PCIe 3.0 x2) support NVMe
eMMC	eMMC 64GB (optional)
EXPANSION
M.2	1 x E-key 2230 (USB2.0/PCIe 3.0×1) support CNVio
OTHERS	—
ENVIRONMENT & CERTIFICATION
OPERATING TEMPERATURE	-20°C ~ 60°C (-4°F ~ 140°F)
STORAGE TEMPERATURE	-20°C ~ 85°C (-4°F ~ 185°F)
OPERATING HUMIDITY	10% ~ 90% relative humidity, non-condensing
CERTIFICATION	Meet CE/FCC Class A

Data sheet	Download (PDF)
Data sheet	Print view
Jetway Catalog (ARM)	Download (PDF)
Jetway Catalog (Mainboards)	Download (PDF)
