Jetway HBJC903I1BV-6412L (Intel Elkhart Lake J6412 CPU, DDR4 up to 32GB, 12V DC-in) [FANLESS]

Jetway HBJC903I1BV-6412L (Intel Elkhart Lake J6412 CPU, DDR4 up to 32GB, 12V DC-in) <b>[FANLESS]</b>

Intel J6412 2.0GHz/QC !
4x COM !
Fanless !
2x LAN !

Intel® Elkhart Lake J6412 2,0 GHz/QC Core MCP-Prozessor (Turbo 2,6 GHz)
Unterstützt DDR4 3200/2933 bis zu 32 GB
2* Intel ® I225-V 2,5 GbE
1* SATA III (6 Gb/s), 1* M.2 M-Schlüssel (NVMe/SATA)
1* M.2 E-Schlüssel (unterstützt WIFI/BT-Modul)
1* M.2 B-Schlüssel (unterstützt 4G/5G-Modul)
1* VGA, 1* HDMI
2* USB3.1 (Gen.1), 4* USB2.0, 2* RS485, 2* RS232
Lüfterloses Kühldesign
12 V DC-Eingang

489.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks.
Will be ordered for you.

RAM :

SSD (M.2 NVME):

OS:

Build/Install:

Model	– HBJC903I1BV-6412L (MB: JLI1BV-0L, Mini-ITX)
CPU/Chipset	– Intel® Elkhart Lake J6412 2.0G/QC SoC processor (Turbo 2.6GHz)
BIOS	– AMI 128MB SMT Flash ROM
Memory	– 1* SO-DDR4 3200/2933MHz up to 32GB
Network	– 2* Intel® i225-V 2.5GbE
Graphics	– Intel® HD Graphics, shared memory – 1* VGA (Max Resolution : 1920×1080@60Hz) – 1* HDMI1.4 (Max Resolution : 4096×2340@30Hz)
Storage	– 1* 2.5”SATA 6Gb/s internal drive bay – 1* M.2 M key (2242/2280, SATA or NVMe)
Expansion	– 1* M.2 E key (2230) support WIFI/BT – 1* M.2 B key (3042/3052) support 4/5G Module

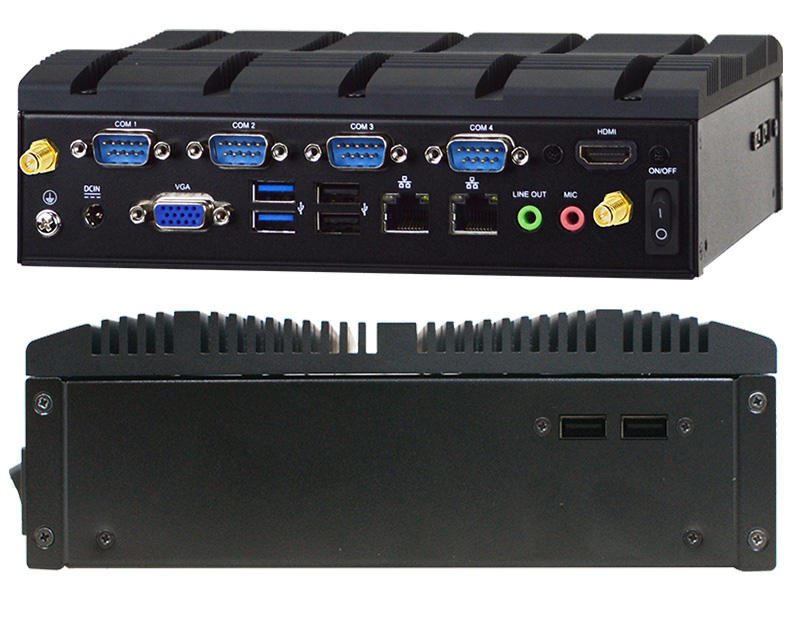

Rear Panel I/O	– 2* USB3.1 (Gen.1) – 2* USB2.0 – 1* VGA – 1* HDMI – 2* RS485 – 2* RS232 – 2* RJ45 – 1* Line-out – 1* MIC – 1* DC Jack – 2* Antenna – 1* GND Hold – 1* Power Button
Side Panel I/O	– 2* USB2.0
Internal Connector	– 1* Nano SIM Card slot
Power Source	– 12V DC-in – Adapter : DC_12V_5A / 60W
Compliance	– CE, FCC, RoHS, ErP Ready, Option
Dimensions	– System: 200.0 (W) x 180.4 (D) x 59.5 (H) mm – Net Weight: 2.27KG； Gross Weight: 3.27KG
Temperature	– Operating Temperature: -10 ~ 50° C – Storage Temperature: -20 ~ 60° C – Humidity: 10% ~ 90% RH @40°C (non-condensing)
OS Support	– Windows 10/11, Linux

Data sheet	Download (PDF)
Data sheet	Print view
Jetway Catalog (Rackmount)	Download (PDF)
Jetway Catalog (Barebones)	Download (PDF)
