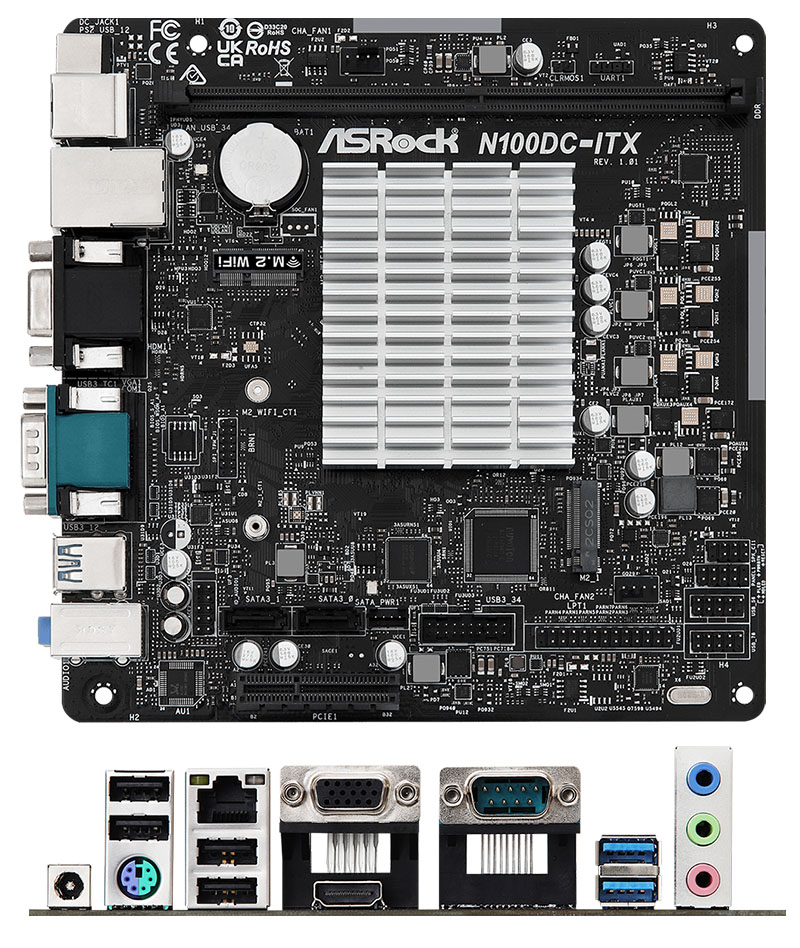

ASRock N100DC-ITX (Intel N1000 4x3.40Ghz, 1x PCIe 3.0 x4) [FANLESS]

ASRock N100DC-ITX (Intel N1000 4x3.40Ghz, 1x PCIe 3.0 x4) <b>[FANLESS]</b>
  • 4x up to 3,40 Ghz !
  • 1x DDR4 DIMM !
  • Mini ITX !

The newest Intel N100 processor, built on the Gracemont CPU microarchitecture using the Intel 7 process, features 4 E-cores with a turbo frequency of 3.4GHz and Intel UHD Graphics with 24 EUs.
It is suitable for affordable, entry-level computing.


  • Intel® Quad-Core Processor N100 (up to 3.4 GHz)
  • Supports 1 DDR4 DIMM
  • 1 DC Jack (Compatible with the 19V power adapter, 5.5 x 2.5mm DC-in jack)
  • 1 PCIe 3.0 x4 (x2 mode), 1 M.2 Key E for WiFi
  • Graphics Output Options: D-Sub, HDMI
  • 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
  • 2 SATA3, 1 M.2 (PCIe Gen3x2)
  • 4 USB 3.2 Gen1 (2 Rear, 2 Front)
  • Realte [more]
    Share

149.95 EUR
incl. 19% VAT, plus shipping
In Stock (0 pcs)
Add to cart
RAM :

SSD (M.2 NVME):

OS:

Build/Install:

The newest Intel N100 processor, built on the Gracemont CPU microarchitecture using the Intel 7 process, features 4 E-cores with a turbo frequency of 3.4GHz and Intel UHD Graphics with 24 EUs.
It is suitable for affordable, entry-level computing.


  • Intel® Quad-Core Processor N100 (up to 3.4 GHz)
  • Supports 1 DDR4 DIMM
  • 1 DC Jack (Compatible with the 19V power adapter, 5.5 x 2.5mm DC-in jack)
  • 1 PCIe 3.0 x4 (x2 mode), 1 M.2 Key E for WiFi
  • Graphics Output Options: D-Sub, HDMI
  • 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
  • 2 SATA3, 1 M.2 (PCIe Gen3x2)
  • 4 USB 3.2 Gen1 (2 Rear, 2 Front)
  • Realtek Gigabit LAN
  • Supports ASRock Auto-Treiber-Installer


Unique Feature Solid durability
- 2+1+1 Power Phase EZ Update
- ASRock Auto Driver Installer
CPU - Intel® Quad-Core Processor N100 (Up to 3.4 GHz)
- Supports Intel® Turbo Boost Technology
Memory - 1 x DDR4 DIMM Slot
- Supports DDR4 non-ECC, un-buffered memory up to 3200
- Supports ECC UDIMM memory modules (operate in non-ECC mode)
- Max. capacity of system memory: 32GB
BIOS - 128Mb AMI UEFI Legal BIOS with GUI support
Graphics - Integrated Intel® UHD Graphics: 24 EUs inside (Up to 750MHz)
- 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.2 and max. Auflösung up to 4K 60Hz
- 1 x D-Sub, supports max. Auflösung up to Full HD (1920x1080) 60Hz
Audio - 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
LAN - Gigabit LAN 10/100/1000 Mb/s
- Realtek 8111H
Slots - 1 x PCIe 3.0 x4 Slot (PCIE1), supports x2 mode*
- 1 x M.2 Socket (Key E), supports type 2230 Intel® CNVio (Integrated WiFi/BT)**

*Unterstützt NVMe-SSD als Boot-Festplatte

**M.2 PCI Express module is not supported
Storage - 1 x M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen3x2 (16 Gb/s) mode*
- 2 x SATA3 6.0 Gb/s Connectors
Connector - 1 x Print Port Header
- 1 x SPI TPM Header
- 1 x Chassis Intrusion and Speaker Header
- 2 x Chassis Fan Connectors (4-pin)
- 1 x Front Panel Audio Connector
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) - 4 x USB 3.2 Gen1 (2 Rear, 2 Front)
- 8 x USB 2.0 (4 Rear, 4 Front)
Rear Panel I/O - 1 x DC Jack (Compatible with the 19V power adapter, 5.5 x 2.5mm DC-in jack)
- 2 x Antennenmontagepunkte
- 1 x PS/2 Mouse/Keyboard Port
- 1 x Serial Port: COM1
- 1 x D-Sub Port
- 1 x HDMI Port
- 2 x USB 3.2 Gen1 Ports
- 4 x USB 2.0 Ports
- 1 x RJ-45 LAN Port
- HD Audio Jacks: Line in / Front Speaker / Microphone
Software and UEFI Software
- ASRock Motherboard Utility (A-Tuning)
UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock Auto-Treiber-Installer
- ASRock Sofort-Flash

*Diese Tools können im Live Update & APP Shop heruntergeladen werden.
Accessories - 1 x Benutzerhandbuch
- 1 x I/O Shield
- 2 x SATA Data Cables
- 1 x SATA Power Cable
- 2 x Screws for M.2 Sockets
Form Factor - Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm
- Solid Capacitor design
OS - Microsoft® Windows® 10 64-bit / 11 64-bit
Certifications - FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)
Data sheet Download (PDF)
Data sheet Print view
