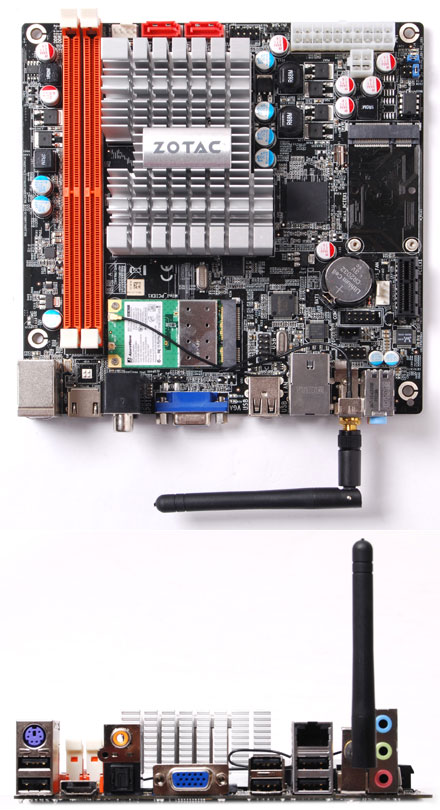

ZOTAC NM10-A-E (with integrated Atom 2x 1.66Ghz CPU, WLAN) [FANLESS] new

PRODUCT IS CURRENTLY NOT AVAILABLE !

ZOTAC NM10-A-E (with integrated Atom 2x 1.66Ghz CPU, WLAN) <b>[FANLESS]</b> *new*

Fanless !
2x Mini-PCI Express
HDMI

Experience energy-efficient computing in a miniature form factor with the ZOTAC NM10-ITX WiFi mini-ITX platform. The ZOTAC NM10-ITX WiFi platform delivers plenty of performance for everyday tasks such as web browsing and e-mail while consuming minimal amounts of energy for true eco-friendly computing that’s smart and sensible.

The ZOTAC NM10-ITX WiFi packs everything you need into a mini-ITX form factor including an Intel® Atom processor and Intel® NM10 Express chipset – a combination that delivers class-leading energy-efficiency and performance. From the Microsoft® DirectX® 9 and OpenGL® 1.5 compatible Intel® Graphics Media Accelerator 3150 graphics process [more]

CPU	Intel Atom D510 2x1.66Ghz
Graphics	Intel GMA 3150
Formfactor	ITX (17x17cm)
RAM	2x DDR-II 667/800
Audio	Intel HD Audio 5.1
Base	Intel ITX

USB	8x USB 2.0
Firewire	--
IDE/SATA	2x SATA
LAN	1x 10/100/1000 Mbit
Parallel	--
Serial	1x

yes	TV-Out
no	PCI
yes	Mini-PCI
no	IDE
no	DVI
yes	800x480 Resolution

yes	Passive-Cooling
yes	PCI-Express
no	PCMCIA
yes	SATA
no	CPU changeable
no	Compact Flash

RAM :

Model	Zotac NM10-A-E
Type	Mini-ITX Mainboard
CPU	Intel Atom D510 (Dual Core) 2x1.66Ghz, FSB 667Mhz / Intel NM10 Express Chipsatz
Graphics	Intel Graphics Media Accelerator 3150 DirectX 9 / Open GL 1.5
RAM	2x DDR2 667/800 RAM (4GB max)
Power connector	20 Pin ATX
Connectors (external)	- 6x USB 2.0 - 1x PS/2 (Keyboard) - 1x HDMI (HDCP compliant) - 1x VGA (DSUB-15) - Audio - 1x LAN 10/100/1000 MBit - 2x Digital S/PDIF (1x optical, 1x coaxial)
SATA	2x SATA
Connectors (internal)	- 2x MiniPCIe (one occupied by WLAN 802.11n module) - 1x PCI Express x1 - 2x USB 2.0 - 2x SATA - 1x RS232
Scope of supply	- Zotac NM10-A-E - I/O ATX rear plate - 2x SATA cable - 1x SATA Power cable - WLAN Antenna + MiniPCIe 802.11n module - Quickstart-Guide - Drivers CD
Dimensions	17cm x 17cm

Data sheet	Download (PDF)
Data sheet	Print view
