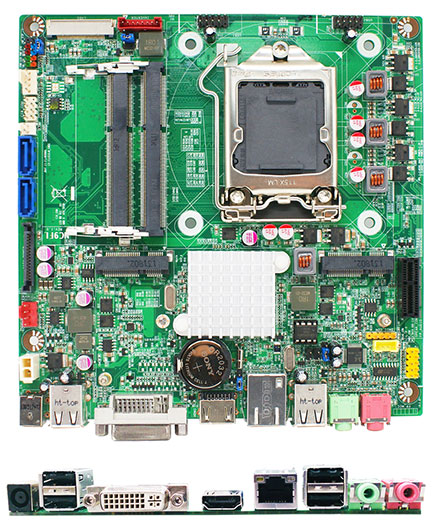

Jetway JNF9FL-H61 (Intel H61)

Jetway JNF9FL-H61 (Intel H61)

  • INTEL® H61 Chipset
  • Support INTEL® LGA 1155 Socket Core i3/i5/i7& Pentium Processor
  • 2 * Dual Channel SO-DIMM DDR3-1333/1066 up to 16GB
  • Support CPU Smart FAN
  • Supports 1 * Gigabit LAN
  • Supports ACPI S3 Function
  • Support Watch dog Technology
  • Thin Mini ITX form factor


Share

149.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks.
Will be ordered for you.
Add to cart
RAM :

SSD (mSATA):

Build/Install:
CPU INTEL® LGA 1155 Socket Core i3/i5/i7& Pentium Processor
Chipset INTEL® H61 Chipset
Memory 2 * SO-DIMM Sockets Dual Channel DDR3 1066/1333 SDRAM up to 16 GB
Expansion Slots 1 *PCIe x 1 1 * half size Mini PCI-E socket
Storage 2 * Serial ATA2 3Gb/s connectors 1 * full size mSATA socket (mSATA only)
Audio Realtek ALC662-VD-GR 6-Channel HD Audio CODEC
Ethernet LAN IN82579 PCI-E Gigabit Ethernet LAN *1
USB Embedded 8 * USB 2.0/1.1
Special Features Support ACPI S3 Support CPU Smart FAN Support Watch Dog
Rear Panel I / O 4 * USB 2.0/1.1 ports 1 * HDMI 1 * 19V DC-in jack 1 * RJ-45 port 1 * DVI-I port 1 * MIC-in & 1 * Line-out jacks
Internal I / O 2 * USB 2.0/1.1 headers for 4 USB 2.0 ports CPU /System Fan connectors; 1 * 24-bits Dual CH LVDS & 1 * Inverter connector 1 * CIR header 1 * AUDIO header 1 * Speaker header 1 * DMIC header 1 * Front panel header 1 * Monitor switch header 1 * 2-pin ATX Power connector
BIOS AMI 8Mb DIP Flash ROM
Form Factor Thin Mini ITX Form Factor (170mm x 170mm)
Functional ATM, POS, AIO, Digital Signage
Certificate CE, FCC, RoHS
Temperature Operating within 0~60 centigrade Storage within -20-85 centigrade
Data sheet Download (PDF)
Data sheet Print view
Jetway Catalog (ARM) Download (PDF)
Jetway Catalog (Mainboards) Download (PDF)
