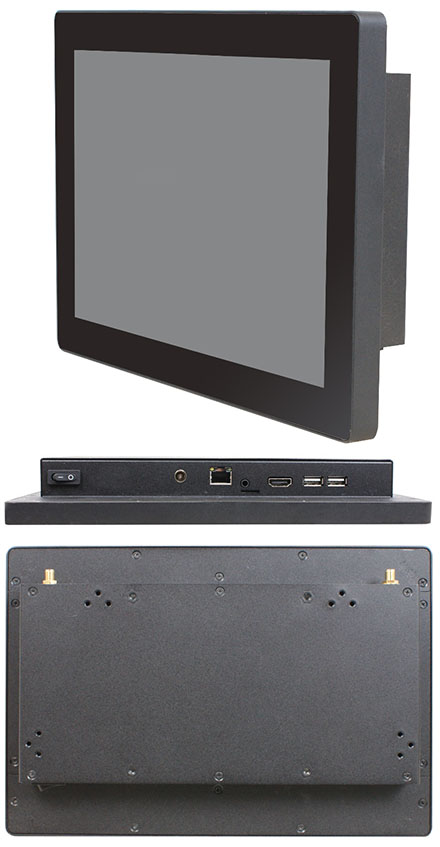

Jetway HPC-WV101 (10.1" Panel PC, ARM Cortex RK3288, 2GB RAM, 8GB Flash ROM, 9-36V Wide Voltage DC-in)

Jetway HPC-WV101 (10.1" Panel PC, ARM Cortex RK3288, 2GB RAM, 8GB Flash ROM, <b>9-36V Wide Voltage DC-in</b>)
  • 9-36V DC-in !
  • ARM Cortex RK3288 !
  • Android 5.1/9.0, Debian 9.0 !
  • IP65 Front !



  • 10.1” 350 nits TFT LCD with LED backlight
  • ARM Cortex RK3288 CPU, 4x 1,8 GHz
  • Onboard 1333/2GB DDR3L DRAM
  • Onboard 8G Flash ROM
  • Support Android 5.1/9.0 or Debian 9.0
  • Front IP65 for protection against water and dust
  • Support 9-36V DC-in






Share

598.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks
Add to cart
Display – IP65, NEMA 4 rugged protection, metal front bezel
– 10.1″ With LED Backlight
– 350 nits Brightness (cd/m²)
– 262K display color
– 1280 x 800 @ 60Hz resolution
– 160°/160° viewing angle (H/V)
– 0.1695 x 0.1695mm pixel pitch
– 16:10 aspect ratio
– 600:1 contrast ratio
– 25ms response time
Touch Screen – Projected capacitive type
– 257.10 x 159.66mm ±0.2mm active range
– Transparency ≧ 87%
– Operating force ≦ 80g
– Surface Hardness ≧ 6H (ASTM D3363, pressure 1N/45°)
Case – Aluminum panel
– Iron case
– Black color
– Spray paint coating requirement
Main System – Rockchip® ARM Cortex A17 1.8GHz/QC processor
– Onboard 1333/2GB DDR3L DRAM
– Onboard 8G Flash ROM
– Watchdog Timer 256 levels, 0~255 sec.
– Speaker: 2* 2W/8Ohm
– Camera: 1* 500W USB (Option)
– OS Support Android 5.1/9.0 or Debian 9.0
– Power Consumption: 8.5W
Expansion – 1* Micro SD socket
I/O Connector – 2* USB2.0 (USB1 Co-lay OTG)
– 1* HDMI 1.4
– 1* AUDIO(Line-out +MIC)
– 1* Micro SD Socket
– 1* Power Button
– 1* GbE
– 1* 9~36V DC jack
Power Input – 9~36V DC-in
Dimensions – 259.3 * 177.3 * 39.0mm
Compliance – CE, FCC, IP65(Front)-Option
Safety – Shock: 15G, 11ms duration
– Vibration: 5~500Hz/1 Grms
Temperature – Operating: -10°C ~ 50°C
– Storage: -20°C ~ 60°C
Data sheet Download (PDF)
Data sheet Print view
