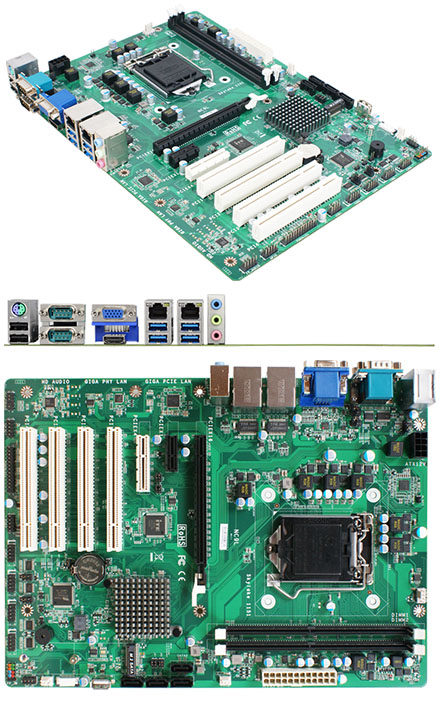

Jetway NC9L-AH110 ATX (Intel Skylake H310) [2x LAN, 6x USB, 2x COM]

Jetway NC9L-AH110 ATX (Intel Skylake H310) [2x LAN, 6x USB, 2x COM]
  • Intel SkyLake !
  • ATX !
  • 6th / 7th Gen. Intel Core !

  • 1. Intel® LGA1151 Socket Core i3, i5, i7 Pentium Processor
  • DDR4 2133MHz SO-DIMM up to 32 GB
  • 1* Intel® I219LM GbE, 1* Intel® i211AT GbE
  • Support HDMI/VGA, 2* External COM, 4* Internal COM (COM1 support RS232/422/485, COM1/2/3/4 Support 5V/12V TTL)
  • 4* USB3.0, 5* USB2.0 (internal USB2 Support Dongle)
  • 1* PCIe x16 Slot, 1* PCIe x4 Slot, 1* PCIe x1 Slot, 4* PCI Slots, 1* M.2 socket (Support SSD, 2242/2280)
  • Support TPM2.0 / Audio Codec (optional)
  • ATX power


Share

279.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks.
Will be ordered for you.
Add to cart
RAM :

SSD (M.2 NVME):

Build/Install:
Form Factor
Dimensions – Thin Mini ITX ( 170 * 170mm)
Processor System
CPU – Intel® LGA1151 Series Processor (Max. 65W)
Core Number – (By CPU)
Max Speed – (By CPU)
L2 Cache – (By CPU)
Chipset – H310
BIOS – AMI 128M Flash ROM
Expansion Slot
M.2 – 1* E key 2230,Support CNVi
– 1* M Key 2242
SATA – 1
PCIe – 1 (PCIe x4 slot)
Memory
Technology – Single channel DDR4 2133MHz DRAM
Max. – 64GB
Socket – 2 * SO-DIMM
Graphics
Controller – Intel® HD Graphics
VRAM – Shared Memory
VGA – 1 (Max. Resolution: 1920×1200@60Hz)
LVDS – 1 (Co-lay eDP, Max. Resolution: 1920×1080@60Hz)
eDP 1.3 – 1 (Co-lay LVDS, Max. Resolution: 4096×2304@60Hz)
HDMI 1.4 – 1 (Max. Resolution : 4096×2160@30Hz)
Multi Display – Dual Display
Ethernet
Ethernet – 10/100/1000 Mbps
Controller – Intel® I219-V + i211AT Gigabit LAN
Connector – 2* RJ 45
Audio
CODEC – N/A
Channel – N/A
SATA
Max Data Transfer Rate – 1* SATAIII (6.0Gb/s)
Rear I/O
VGA – 1
HDMI – 1
Ethernet – 2
USB – 4* USB 3.0
Audio – 1 (Line-out, MIC, No function)
DC-input – 1
Internal Connector
USB – 5 (USB 2.0)
PS/2 – 1
LVDS / inverter – 1 (Co-lay eDP )
eDP – 1
Serial – 4 (COM1/2 Support 5V/12V TTL)
SATA – 1* SATAIII (6.0Gb/s)
M.2 – 2 (M key + E key)
GPIO – 1 (8 bit)
Chassis intrusion – 1
Audio Header – 1 (No function)
SMBUS/ I2C – 1
AT mode – 1
Watchdog Timer
Output – From Super I/O to drag RESETCON#
Interval – 256 segments (10sec ~ 255min)
Power Requirements
Input PWR – 12 ~ 24V DC-in
Power On AT/ATX Supported
– AT : Directly PWR on as Power input ready
– ATX: Press Button to PWR on after Power input ready
Certifications
Certifications – CE, FCC, RoHS, REACH
Environment
Temperature – Operating: 0°C ~ 60°C
– Storage: -20°C ~ 85°C
Data sheet Download (PDF)
Data sheet Print view
