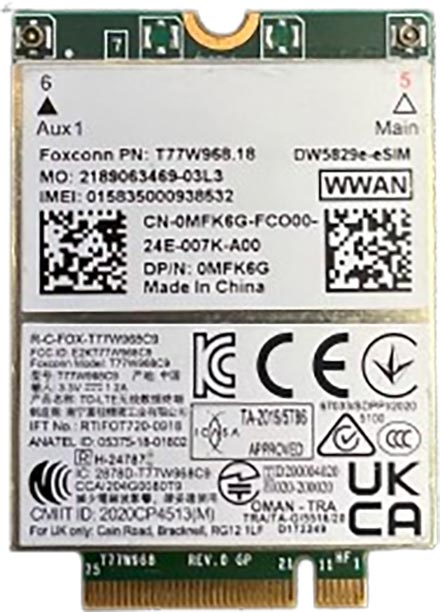

Foxconn DW5829e-eSIM M.2 Modem (4G/LTE CAT 11 450/75 Mbit)

Foxconn DW5829e-eSIM M.2 Modem (4G/LTE CAT 11 450/75 Mbit)
  • M.2 3042 !
  • 4G / LTE !
  • eSIM !

DW5829e-eSIM is designed to enable wireless data connectivity for notebook computer or any other device compatible with the PCI Express M.2 Specification 3042 type Key-B slot. DW5829e-eSIM is the data card solution that delivery wireless wide-area network (WWAN) connectivity for the LTE, UMTS (HSDPA/HSUPA/HSPA+/DC-HSPA+) and GPS/Glonass/Beidou protocols in one hardware configuration.

LTE Air Interface

  • LTE Rel11
    • DL - 450 Mbps / 6-layer / 60 MHz CA
    • UL - 75 Mbps / None CA
    • 64 QAM DL / 64 QAM UL
    • FDD + TDD CA
    • Advance LTE IC + NAIC (with CRS only)
[more]

Share

69.95 EUR
incl. 19% VAT, plus shipping
In Stock (1 pcs)
Add to cart

SSD (M.2 NVME):

DW5829e-eSIM is designed to enable wireless data connectivity for notebook computer or any other device compatible with the PCI Express M.2 Specification 3042 type Key-B slot. DW5829e-eSIM is the data card solution that delivery wireless wide-area network (WWAN) connectivity for the LTE, UMTS (HSDPA/HSUPA/HSPA+/DC-HSPA+) and GPS/Glonass/Beidou protocols in one hardware configuration.

LTE Air Interface

  • LTE Rel11
    • DL - 450 Mbps / 6-layer / 60 MHz CA
    • UL - 75 Mbps / None CA
    • 64 QAM DL / 64 QAM UL
    • FDD + TDD CA
    • Advance LTE IC + NAIC (with CRS only)

WCDMA/HSPA Air Interface

  • R99
  • All modes and data rates for WCDMA FDD
  • R5 HSDPA
    • PS data speeds up to 7.2 Mbps on the downlink
  • R6 HSUPA
    • E-DCH data rates of up to 5.76 Mbps for 2 ms TTI (UE category 6) uplink
  • R7 HSPA+
    • Downlink 64 QAM SISO: up to 21 Mbps
    • Downlink 16 QAM 2x2 MIMO: up to 28 Mbps
  • R8 DC-HSPA+
    • Downlink dual carrier with 64 QAM (SISO); up to 42 Mbps

GNSS

  • Customizable tracking session

Feature Description
Physical PCI express M.2 module, size 3042, Key.B, 75Pin golden finger
Electrical Single VCC supply (3.135V~4.4V follow M.2 standard)
Dimension Dimensions (L × W × H): 42 mm × 30 mm × 2.3 mm, maximum height=2.38mm (add PCB tolerance=0.08mm)
Shielding design Shield case or board design, no additional shielding requirement
Weight Approximately ~8g
USIM Off-board USIM connector supported
Operating Bands WCDMA/HSDPA/HSUPA/HSPA+ operating bands:
Band 2: 1850 to 1910 MHz (UL), 1930 to 1990 MHz (DL)
Band 4: 1710 to 1755 MHz (UL), 2110 to 2155 MHz (DL)
Band 5: 824 to 849 MHz (UL), 869 to 894 MHz (DL)

LTE FDD/TDD operating bands:
Band 2: 1850 to 1910 MHz (UL), 1930 to 1990 MHz (DL)
Band 4: 1710 to 1755 MHz (UL), 2110 to 2155 MHz (DL)
Band 5: 824 to 849 MHz (UL), 869 to 894 MHz (DL)
Band 7: 2500 to 2570 MHz (UL), 2620 to 2690 MHz (DL)
Band 12: 699 to 716 MHz (UL), 729 to 746 MHz (DL)
Band 13: 777 to 787 MHz (UL), 746 to 756 MHz (DL)
Band 14: 788 to 798 MHz (UL), 758 to 768 MHz (DL)
Band 17: 704 to 716 MHz (UL), 734 to 746 MHz (DL)
Band 25: 1850 to 1915 MHz (UL), 1930 to 1995 MHz (DL)
Band 26: 814 to 849 MHz (UL), 859 to 894 MHz (DL)
Band 29: 717 to 728 MHz (DL)
Band 30: 2305 to 2315 MHz (UL), 2350 to 2360 MHz (DL)
Band 38: 2570 to 2620 MHz (UL/DL)
Band 41: 2496 to 2690 MHz (UL/DL)
Band 66: 1710 to 1800 MHz (UL), 2110 to 2200 MHz (DL)
Diversity/2nd Rx All UMTS operating bands
All LTE operating bands
GNSS GPS: L1 (1575.42MHz)
GLONASS: L1 (1602MHz)
Beidou (1561.098MHz)
Galileo E1 (1575.42)
USIM Voltage Support 1.8V and 2.85V, and auto detects follow SIM card type
Antenna connectors MAIN: Support all LTE & UMTS bands
AUX: Supports all LTE & UMTS bands Diversity and GPS simultaneously
Throughput WCDMA CS: DL 84 kbps / UL 84 kbps
WCDMA PS: DL 384 kbps / UL 384 kbps
HSPA+: DL 21.6 Mbps / UL 5.76 Mbps
DC-HSPA+: DL 42 Mbps / UL 5.76 Mbps
LTE Cat4: DL 150 Mbps / UL 50 Mbps
LTE Cat6: DL 300 Mbps / UL 50 Mbps
LTE Cat9: DL 450 Mbps / UL 50 Mbps
Data sheet Download (PDF)
Data sheet Print view
