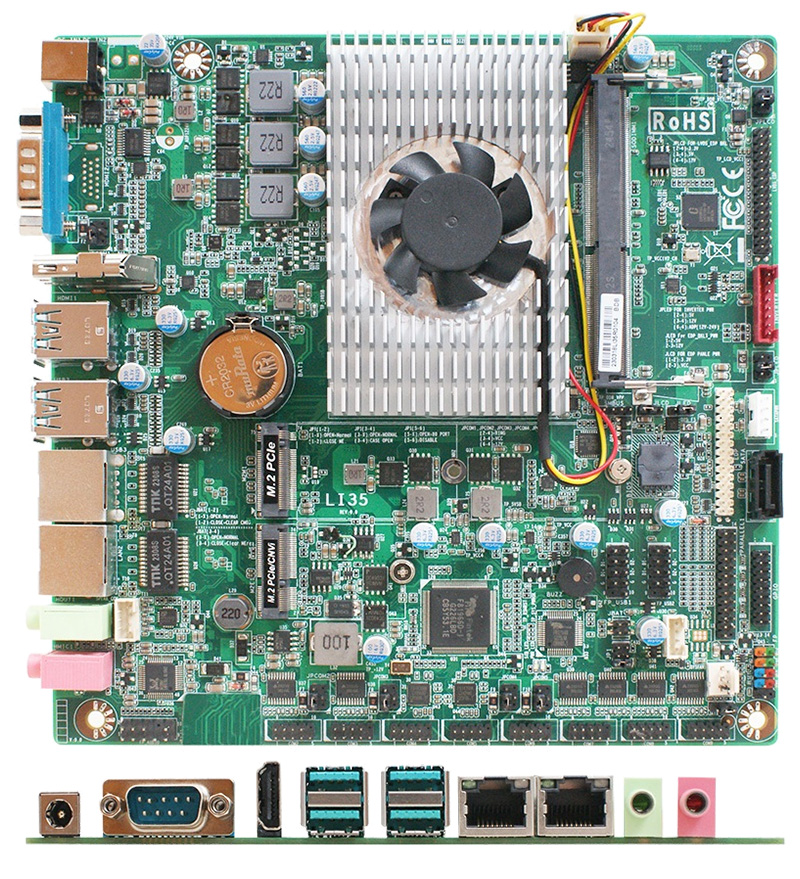

Jetway JLI35-35G7L Thin-ITX (Half-Height, Intel i5-1135G7 SoC, 8x COM, 12-24V DC)

Jetway JLI35-35G7L Thin-ITX (Half-Height, Intel i5-1135G7 SoC, 8x COM, 12-24V DC)
  • Intel i5-1135G7 SoC !
  • MiniITX Thin !
  • 8x COM !

  • Intel® 11th Tiger Lake-UP3 SoC Processor (Default: 6305E 1.8GHz/DC)
  • 1* DDR4 3200MHz SO-DIMM up to 32GB
  • 1* HDMI, 1* LVDS/eDP, 1* eDP
  • 2* Realtek® RTL8111H GbE
  • 4* USB3.2 (Gen.1), 5* USB2.0, 9* COM (COM4/5 Support RS232/422/485)
  • 1* M.2 M-key (2242/2280, PCIe x4), 1* M.2 E-key (2230), 1* SATAIII
  • Onboard TPM2.0 (Option)
  • 12-24V DC-in





Share

589.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks
Add to cart
Model – LI35-1135G7L More Options: – LI35-6305EL (Default)
– LI35-6305E2L (TPM2.0)
– LI35-1115G4EL
– LI35-1115G4E2L (TPM2.0)
– LI35-1135G7L
– LI35-1135G72L (TPM2.0)
– LI35-1145G72L (TPM2.0)
Form Factor – Mini-ITX (170 * 170mm)
Processor System – Intel® 11th Tiger Lake-UP3 6305E / 1115G4E / 1135G7 / 1145G7E SoC Processor
– AMI Flash ROM BIOS
Memory – 1* DDR4 3200MHz So-DIMM up to 32GB
Storage – 1* SATAIII (6Gb/s)
– 1* M.2 M-key (2242/2280 PCI-Ex4 Gen.3 interface, Support SSD)
Expansion – 1* M.2 E-key (2230, CNVi/PCI-Ex1/USB2.0, Support WIFI/BT Module)
Ethernet – 2* Realtek® RTL8111H 10/100/1000Mbps
Graphics – Intel® HD Graphics, shared memory
– 1* HDMI2.0 (Max Resolution: 4096×2160@60Hz)
– 1* LVDS/EDP (Max Resolution: 1920×1200@60Hz)
– 1* EDP (Max Resolution: 4096*2304@30Hz)
– Support Triple Displays
Audio – HD audio: Realtek ALC897
– Build-in Amplifier to support 3W Speaker
Watchdog Timer – From Super I/O to drag RESETCON#
– 256 segments (10sec ~ 255min)
Internal I/O – 4* USB2.0 (PH2.54)
– 1* USB2.0 (PH2.0)
– 16bit GPIO (5V, Co-lay LPT)
– 1* LPT (Co-lay GPIO)
– 9* COM (COM4/5 Support RS232/422/485)
– 1* SATAIII (6Gb/s)
– 1* SATA Power
– 1* Chassis intrusion
– 1* FP_ Audio
– 1* Audio amplifier header to support left and right side Speakers
– 1* FP_JW
– 1* SMBUS
– 1* AT model
– 1* CPU FAN Header (Smart FAN)
– 1* SYSTEM FAN (W/O Smart FAN)
External I/O – 4* USB3.2 (Gen.1)
– 1* HDMI2.0
– 2* RJ45
– 1* COM (RS232)
– 1* Line-Out
– 1* MIC
– 1* DC Jack (12-24V DC in)
Power 12-24V DC-in, AT/ATX Supported
– AT: Directly PWR on as Power input ready
– ATX: Press Button to PWR on after Power input ready
Compliance – CE, FCC, LVD, RoHS, REACH (Option)
Temperature – Operating Temperature: 0 ~ 60° C
– Storage Temperature: -20 ~ 70° C
– Humidity: 10% ~ 90% RH @40°C (non-condensing)
OS Support – Windows 10 / 11, Linux
