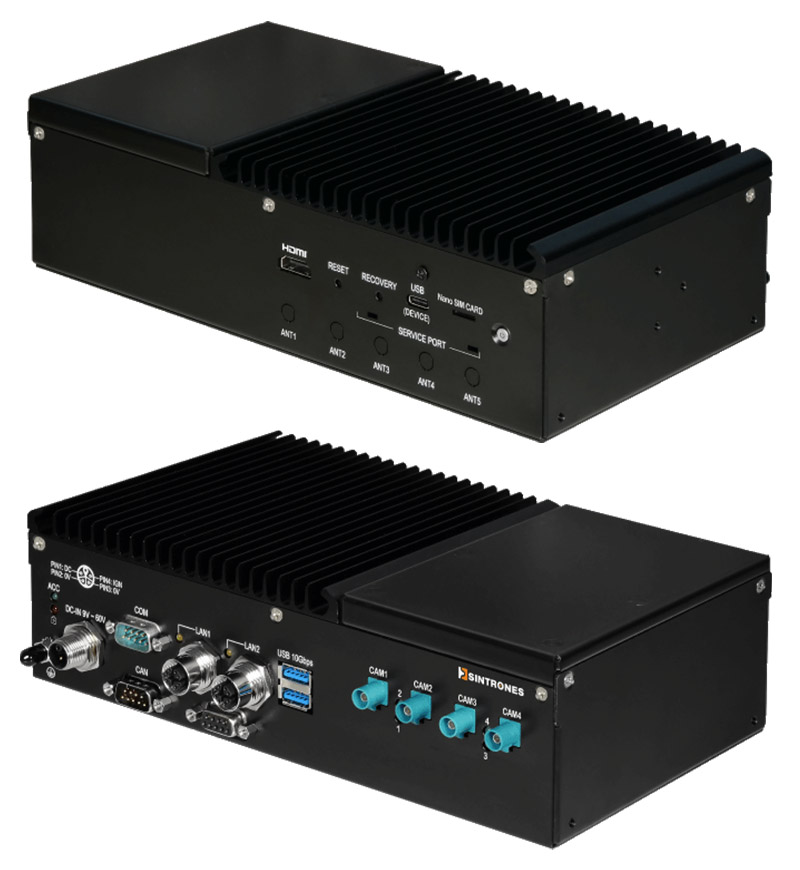

Sintrones IBOX-601-M12X-00-ONX16-S05 (NVIDIA Jetson Orin NX Fanless Edge AI, 16GB, 480GB SSD)

PRODUCT IS CURRENTLY NOT AVAILABLE !
Sintrones IBOX-601-M12X-00-ONX16-S05 (NVIDIA Jetson Orin NX Fanless Edge AI, <b>16GB, 480GB SSD</B>)
  • NVidia Jetson Orin NX !
  • 16GB RAM !
  • 480GB SSD !
  • 4x FAKRA / 4-CH GMSL x1 !

  • NVIDIA® Jetson Orin™ NX SoM with 1024 CUDA Cores
  • 4 x GMSL Cameras Support
  • 2 x Ethernet with M12 Connectors
  • 1 x CAN FD for Vehicle Connection
  • 9-60VDC Input with Built-in Smart Power Management
  • –25°C ~ 70°C Operating with Fanless Design
  • Optional Backup Battery for Emergency
[more]

Share

  • NVIDIA® Jetson Orin™ NX SoM with 1024 CUDA Cores
  • 4 x GMSL Cameras Support
  • 2 x Ethernet with M12 Connectors
  • 1 x CAN FD for Vehicle Connection
  • 9-60VDC Input with Built-in Smart Power Management
  • –25°C ~ 70°C Operating with Fanless Design
  • Optional Backup Battery for Emergency


System

IBOX-601-M12X-00-ONX16-S05

NVIDIA® Jetson™ Orin NX 16GB / 480GB SSD / Model M12/ 4x FAKRA / 4-CH GMSL x1

Module

NVIDIA® Jetson Orin™ NX 16GB – 100 TOPS
(1024 CUDA cores + 8-core ARM Cortex-A78AE CPU + 16 GB LPDDR5)



Security

Platform Security Controller (PSC), Security Engine (SE)

Interface

- 2 x M12 X-coded for 1 x 2.5GbE & 1 x GbE
( Intel® 2.5GbE, SoM Built-in GbE)


- 2 x USB 3.2 Type-A
* Two ports share 10Gbps bandwidth

- 1 x HDMI 2.1 output supports 4K resolution

- 1 x HD Audio from the HDMI

- 1 x DB-9 for RS-232/422/485

- 4 x FAKRA for GMSL-2 cameras

- 1 x DB-9 for CAN FD

- 1 x DB-9 for 4 x DI / 4 x DO

- 1 x USB Type-C for system recovery (Device only)

- 1 x Nano SIM card slot

- 5 x Pre-cut holes for external SMA antenna


INTERNAL EXPANSION

  • 1 x M.2 2230 Key E slot
    • 1 x M.2 3042/52 Key B slot with nano SIM card slot
  • 1 x mPCIe full-size slot (USB.2.0 supported)




STORAGE (Internal)

  • 1 x M.2 2280 Key M slot supports NVMe SSD (Pre-installed system BSP)

Operating System / SDK

NVIDIA® JetPack including Jetson Linux, NVIDIA® development tools

Operating Temp.

-25°C ~ 70°C (-13°F ~ 158°F), ambient w/ 0.6m/s airflow
*Operating temp. varies by accessories installed.





Storage Temp.

-40°C ~ 80°C (-40°F ~ 176°F)

Relative Humidity 10% RH – 90% RH (non-condensing)
Certification / Standard CE, FCC Part-15 Class A, E-mark, EN50155, EN45545-2 (R25)
Vibration •
  • Random – IEC60068-2-64, random, 2.5G@5~500Hz, 1hr/axis
    • MIL-STD-810G – Method 514.6, Procedure I, Category 4
Shock MIL-STD-810G, Method 516.6, Procedure I, Trucks and semi-trailers=15G (11ms) with SSD
Power Input • 1 x M12 K-coded for DC-IN 9 ~ 60V
• Supports Smart Power Management, OCP and OVP
Mechanical Aluminum Alloy
Fanless Passive Cooling Design
DIN-Rail, Wall Mount
1870 g
270,2 mm (L) x 270,2 mm (W) x 69 mm (H)
Optional Accessories

WI-FI: M.2 2230 Wi-Fi Module

WWAN Modem: M.2 3042/52 WWAN Modem

GPS: mPCIe GPS Module

UPS: BAT-2300v2

GMSL Camera
