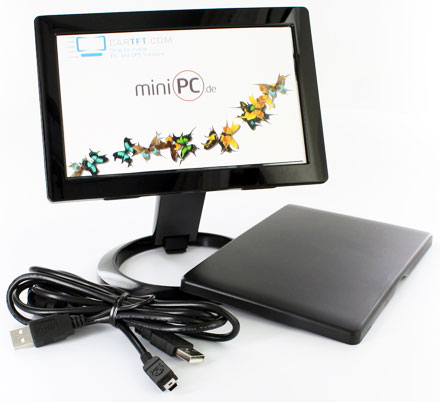

Nanovision UM-720S V2 (7" USB Touchscreen Display)

Nanovision UM-720S V2 (7" USB Touchscreen Display)
3D 360° View
  • Displaylink !
  • 800x480 !
  • Touchscreen !

This TFT monitor is connected to a Windows PC USB connector. The display is working as an additional display which can be added to the main display area on the left, right, upper or lower. Alternatively it can mirror the primary screen. The display can be swiveled in steps of 90°.

In addition, the UM-720S model comes with touchscreen.

The UM-720S comes with integrated mounting and protection ! Simply turn over the rear side of the display to get a stand.

Specifications :

System requirements:
- CPU : 1.2Ghz+
- RAM : 512MB RAM+
- USB : min. 1x USB 2.0
- HDD : 30MB
- OS : Windows 2000 SP4
[more]

Share

169.95 EUR
incl. 19% VAT, plus shipping
In Stock (20 pcs)

4 von 5 Sternen
34 ratings
Add to cart

This TFT monitor is connected to a Windows PC USB connector. The display is working as an additional display which can be added to the main display area on the left, right, upper or lower. Alternatively it can mirror the primary screen. The display can be swiveled in steps of 90°.

In addition, the UM-720S model comes with touchscreen.

The UM-720S comes with integrated mounting and protection ! Simply turn over the rear side of the display to get a stand.

Specifications :

System requirements:
- CPU : 1.2Ghz+
- RAM : 512MB RAM+
- USB : min. 1x USB 2.0
- HDD : 30MB
- OS : Windows 2000 SP4, Windows XP SP2 (32bit), Windows Vista & 7 & 8 (32bit/64bit)
Notes :
- 3D applicationes (eg. 3D games) can not be displayed.

- How many displays can be connected to a PC at the same time ?
1-2 displays : 1.2Ghz CPU, 512MB RAM
3-5 displays : 1.8Ghz CPU, 1GB RAM
6++ displays : 1.6Ghz Dual-Core CPU, 1GB RAM

- MAC OS Support ?
Display, webcam, etc. : Yes
Touchscreen (MAC OS) : Right now only available with non-free 3-rd party driver.

Touchscreen-Driver for Windows is free and included with the shipment !

Model UM-720S V2 (7")
LCD Panel Size 17.78 cm
Display Size 153mm (H) x 93mm (V)
Pixel Pitch 0.1905mm (H) x 0.1905mm (V)
Number of Colors 16.7M
Contrast 400:1
Brightness 350 cd/m²
Input Power USB (DC 5V)
Screen resolution WVGA (800x480)
Power consumption 2W~4.5W
Dimensions 119mm (H) x 180mm (L) x 22mm (W)
Weight ~0,6 kg
Data sheet Download (PDF)
Data sheet [Energy efficiency class] Download (PDF)
Data sheet Print view
Driver (Windows) Download
Please login for creating product ratings.
Your rating:

Please tell us your opinion. Rate the product on a scale from 1 to 5. A value of 5 means the best possible rating. If you want you also can leave a comment.

Your ratings are honored on many ways. Your report will help other customers to better judge about the products. And you can benefit from reports other customers are giving.

In addition we credit 0.50 EUR for each given rating with comment and 1.00 EUR for each given rating with comment (more than 150 characters) on your account. The credit will be substracted automatically on your next order !

We reserve us the right to delete given comments (for example on attempts to give comments with senseless content, copying of other comments, inserting of foreign content, abusing the system for financing orders). "Fair-use-policy" does apply (as of rule of thumb you should give comments for products which you have purchased already. And your credit account only in rare cases will have 2 or even 3 digits). The credit can only be withdrawn by placing an order. It is not possible to get the credit cash or transferred in an other way.

Customer ratings: 4 von 5 Sternen
Average rating, based on 34 ratings
4 von 5 Sternen from Wayne am 16.08.2013 | | See all my comments

Very easy to configure and set up.
Overall performance: very good.
The sensitivity of the touch panel could be slighly improved
Smart flip-stand.
No audio (speaker).

4 von 5 Sternen from Teddy1904 am 05.06.2013 | | See all my comments

Gutes Display, jedoch bringt es oft einen Bluescreen wenn das Display im Betrieb abgesteckt wird. Hatte damals im Auto mit dem USB Stecker einen Wackelkontakt.

5 von 5 Sternen from Hecki am 13.03.2013 |

Alles super gelaufen; schneller Versand; Top Ware

5 von 5 Sternen from orgelreiser am 17.05.2012 |

Super! Ohne extra Stromkabel und mit erstaunlich einfacher Treiberinstallation. So macht das Benutzen wirklich Spaß.

5 von 5 Sternen from matare01 am 01.12.2011 |

Echt Super, 2 minuten und schon läuft es, für mich wahr es das Geld wert, Der versand wahr schohn fast erschreckend schnell.
