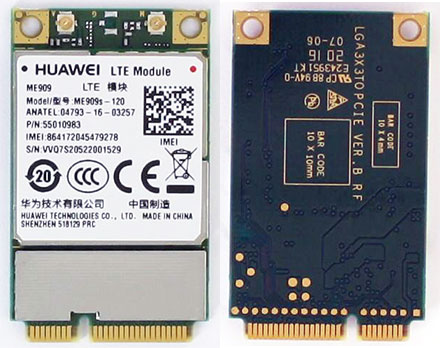

HSPA / UMTS / EDGE / LTE 4G Mini-PCIe Modem (Huawei ME909s-120 55010983)

HSPA / UMTS / EDGE / <b>LTE 4G</b> Mini-PCIe Modem (Huawei ME909s-120 55010983)
  • Full-size Mini-PCIe !
  • UMTS / 3G !
  • LTE !
  • P/N 55010983

(V1= USA-tech based chip, V2= China-tech based chip)

ME909s-120 is the first LTE cat4 module based on Hi-Silicon chipset. Which is high-quality designed LTE module in small size and Huawei standard LGA form factor, especially for industrial-grade M2M applications such as vehicle telematics, tracking, mobile payment, industrial router, safety monitor and industrial PDAs. ME909s-120 supports 150Mbps downlink data rate, including enhanced features like FOTA, USSD and Huawei enhanced AT commands. ME909s-120(B1/B2/B3/B4/B5/B7/B8/B20) supports EMEA region, and has two different form factors: LGA and Mini PCIe form factor. With Huawei pin-to-pin form factor, it is easy to migrate
[more]

Share

149.95 EUR
incl. 19% VAT, plus shipping
In Stock (23 pcs)

Add to cart

(V1= USA-tech based chip, V2= China-tech based chip)

ME909s-120 is the first LTE cat4 module based on Hi-Silicon chipset. Which is high-quality designed LTE module in small size and Huawei standard LGA form factor, especially for industrial-grade M2M applications such as vehicle telematics, tracking, mobile payment, industrial router, safety monitor and industrial PDAs. ME909s-120 supports 150Mbps downlink data rate, including enhanced features like FOTA, USSD and Huawei enhanced AT commands. ME909s-120(B1/B2/B3/B4/B5/B7/B8/B20) supports EMEA region, and has two different form factors: LGA and Mini PCIe form factor. With Huawei pin-to-pin form factor, it is easy to migrate from MU609, MU709 or ME909u family to ME909s-120. All Huawei modules comply with the RoHS directive and Regional certification.

Manufacturer Huawei
Model ME909s-120
Unlocked Ready for use with global services. No contract required.
Network Bands LTE (FDD): B1,B2,B3,B4,B5,B7,B8,B20
DC-HSPA+/HSPA+/HSPA/UMTS : B1,B2,B5,B8
EDGE/GPRS/GSM: 850/900/1800/1900 MHz

Data Speed DC-HSPA+ :Downlink:42 Mbps, Uplink: 5.76 Mbps
LTE FDD: Downlink:150 Mbps, Uplink: 50 Mbps @Bandwidth 20M (CAT4)
Interface Mini PCIe interface
Antenna interface
USB 2.0 High speed
PCM Voice
SIM Card
LED
Power supply
Reset
Dimensions 30.4 x 51 x 3.52mm.
Supported Systems Windows 8/10, Linux, Android
Power Supply 3.2 V to 4.2 V (typical: 3.8 V)
Temp Range -40° to 85°C
Voice PCM Voice
DTMF
Special Features CDC-ECM
FOTA
Firmware Update possible
Embedded UDP/TCP/FTP(s)/HTTP(s) stack
High-speed UART
CMUX
Sleep mode
Package Contents New Huawei ME909s-120 4G LTE Embedded Module.
Data sheet Download (PDF)
Data sheet Print view
Hardware Guide [EN] Download (PDF)
Dialer Software Download
Driver (Windows) Download
